电缆防水接头
电缆防水接头
-电缆防水接头是在电力系统中经常用到的一种连接器件。主要是应用在户外产品、中大型的远方控制机械，本体在户外控制系统不在本体上的设备。比如化工厂、电厂、供电局、电信网络的基站中、自动化程度较高的工厂中，都要用到电缆防水接头。
黑色
灰白色
基本信息
金属电缆接头材质：黄铜镀镍 塑料电缆接头材质：尼龙
密封件材质：尼龙6和丁晴橡胶
工作温度：静态：-40°C~100°C；动态：-20℃~80℃。
防护等级：在规定的卡口范围内，并使用防水垫片及夹紧圈旋紧迫紧头，达到IP68。
注：可根据需求提供特殊螺纹，卡口范围、螺纹长度的接头产品。

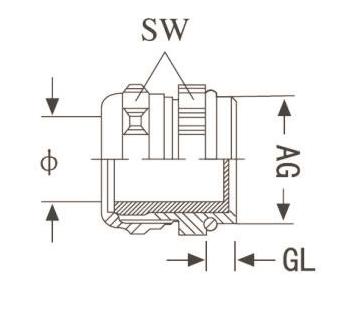

| 型号 （TYPE NO.） | 螺纹尺寸 | 卡口范围 （φ） | 螺纹外径 (AG) | 扳手尺寸 (SW) | 螺纹长度 (GU) | ||||
| 金属 | 灰白色塑料 | 黑色塑料 | 德制螺纹 | ||||||
| DN-PG7 | DNP-PG7 | DNP-PG7B | PG7 | 3-6.5 | 12.5 | 14 | 6 | ||
| DN-PG9 | DNP-PG9 | DNP-PG9B | PG9 | 4-8 | 15.2 | 18 | 6.5 | ||
| DN-PG11 | DNP-PG11 | DNP-PG11B | PG11 | 5-10 | 18.6 | 20 | 7 | ||
| DN-PG13.5 | DNP-PG13.5 | DNP-PG13.5B | PG13.5 | 6-12 | 20.4 | 22 | 7.5 | ||
| DN-PG16 | DNP-PG16 | DNP-PG16B | PG16 | 8-14 | 22.5 | 24 | 7 | ||
| DN-PG21 | DNP-PG21 | DNP-PG21B | PG21 | 13-18 | 28.3 | 30 | 8 | ||
| DN-PG29 | DNP-PG29 | DNP-PG29B | PG29 | 18-25 | 37.0 | 40 | 9.5 | ||
| DN-PG36 | DNP-PG36 | DNP-PG36B | PG36 | 22-32 | 47.0 | 50 | 12 | ||
| DN-PG42 | DNP-PG42 | DNP-PG42B | PG42 | 31-38 | 54.0 | 55 | 12 | ||
| DN-PG48 | DNP-PG48 | DNP-PG48B | PG48 | 37-44 | 59.3 | 65 | 12 | ||
| M公制螺纹 | |||||||||
| DN-M12 | DNP-M12 | DNP-M12B | M12x1.5 | 3-6.5 | 12 | 14 | 6 | ||
| DN-M14 | DNP-M14 | DNP-M14B | M14x1.5 | 3-6.5 | 14 | 14 | 6 | ||
| DN-M16/A | DNP-M16/A | DNP-M16B/A | M16x1.5 | 4-8 | 16 | 17 | 6.5 | ||
| DN-M16 | DNP-M16 | DNP-M16B | M16x1.5 | 5-10 | 16 | 20 | 6 | ||
| DN-M18 | DNP-M18 | DNP-M18B | M18x1.5 | 5-10 | 18 | 20 | 7 | ||
| DN-M20/A | DNP-M20/A | DNP-M20B/A | M20x1.5 | 6-12 | 20 | 22 | 8 | ||
| DN-M20 | DNP-M20 | DNP-M20B | M20x1.5 | 8-14 | 20 | 24 | 8 | ||
| DN-M22 | DNP-M22 | DNP-M22B | M22x1.5 | 8-14 | 22 | 24 | 8 | ||
| DN-M24 | DNP-M24 | DNP-M24B | M24x1.5 | 8-14 | 24 | 27 | 8 | ||
| DN-M25/A | DNP-M25/A | DNP-M25B/A | M25x1.5 | 9-16 | 25 | 27 | 7.5 | ||
| DN-M25 | DNP-M25 | DNP-M25B | M25x1.5 | 13-18 | 25 | 30 | 7.5 | ||
| DN-M32/A | DNP-M32/A | DNP-M32B/A | M32X1.5 | 15-22 | 32 | 35 | 8.5 | ||
| DN-M32 | DNP-M32 | DNP-M32B | M32x1.5 | 18-25 | 32 | 40 | 8.5 | ||
| DN-M40/A | DNP-M40/A | DNP-M40B/A | M40x1.5 | 18-25 | 40 | 45 | 12 | ||
| DN-M40 | DNP-M40 | DNP-M40B | M40x1.5 | 22-32 | 40 | 50 | 12 | ||
| DN-M50/A | DNP-M50/A | DNP-M50B/A | M50x1.5 | 22-32 | 50 | 57 | 12 | ||
| DN-M50 | DNP-M50 | DNP-M50B | M50x1.5 | 31-38 | 50 | 57 | 12 | ||
| DN-M63 | DNP-M63 | DNP-M63B | M63x1.5 | 37-44 | 63 | 65 | 12 | ||
| 英制螺纹 | |||||||||
| DN-G1/4 | DNP-G1/4 | DNP-G1/4B | G1/4 | 4-8 | 15.2 | 18 | 8 | ||
| DN-G3/8 | DNP-G3/8 | DNP-G3/8B | G3/8 | 5-10 | 18.6 | 20 | 8 | ||
| DN-G1/2A | DNP-G1/2A | DNP-G1/2AB | G1/2 | 6-12 | 20.4 | 22 | 9 | ||
| DN-G1/2 | DNP-G1/2 | DNP-G1/2B | G1/2 | 10-14 | 22.5 | 24 | 10 | ||
| DN-G3/4 | DNP-G3/4 | DNP-G3/4B | G3/4 | 13-18 | 28.3 | 30 | 11 | ||
| DN-G1A | DNP-G1A | DNP-G1AB | G1 | 16-21 | 33.0 | 40 | 11 | ||
| DN-G1 | DNP-G1 | DNP-G1B | G1 | 18-25 | 33.0 | 40 | 13 | ||
| DN-G11/4 | DNP-G11/4 | DNP-G11/4B | G11/4 | 22-32 | 41.5 | 40 | 13 | ||
| DN-G11/2 | DNP-G11/2 | DNP-G11/2B | G11/2 | 22-32 | 47.5 | 50 | 13 | ||
