圆形裸端子（R型）
圆形裸端子（R型）
- 主要用于汽车、造船、电热器件、电子束线、灯饰、电机设备等.
本色
基本信息
产品材质：接线端子采用优质紫铜制成,导电性良好。
产品特点：采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套日成端子钳即可压紧电线,接线美观,
产品特性：品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法：将电线剥开外皮,穿入端子后铜管

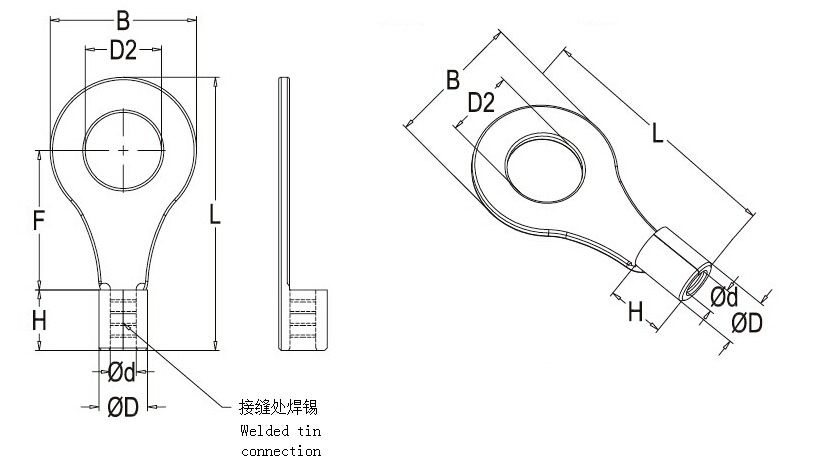

| 型号 | 内径 | 外径 | 线规 | ||
| mm2 | TYPE NO. | D2 | B | mm2 | A.W.G |
| 0.5-1.5 | RNB1.25-3 | 3.2 | 5.7 | 0.25-1.65 | 22-16 |
| RNB1.25-3.5 | 3.7 | 5.7 | |||
| RNB1.25-3.5L | 3.7 | 8.0 | |||
| RNB1.25-4M | 4.3 | 6.8 | |||
| RNB1.25-4 | 4.3 | 8 | |||
| RNB1.25-5 | 5.3 | 8 | |||
| RNB1.25-6 | 6.4 | 11.6 | |||
| RNB1.25-8 | 8.4 | 11.6 | |||
| RNB1.25-10 | 10.5 | 13.6 | |||
| 1.5-2.5 | RNB2-3M | 32 | 6.6 | 1.04-2.63 | 16-14 |
| RNB2-3 | 32 | 8.5 | |||
| RNB2-3.5 | 3.7 | 6.6 | |||
| RNB2-3.5L | 3.7 | 8.5 | |||
| RNB2-4M | 4.3 | 6.6 | |||
| RNB2-4 | 4.3 | 8.5 | |||
| RNB2-5M | 5.3 | 8.5 | |||
| RNB2-5 | 5.3 | 9.5 | |||
| RNB2-6 | 6.4 | 12 | |||
| RNB2-8 | 8.4 | 12 | |||
| RNB2-10 | 10.5 | 13.7 | |||
| 2.5-4 | RNB3.5-4 | 4.3 | 9.5 | 2.63-4.6 | 14-12 |
| RNB3.5-5 | 5.3 | 9.5 | |||
| 4~6 | RNB5.5-3 | 32 | 9.5 | 2.63-6.64 | 12-10 |
| RNB5.5-3.5 | 3.7 | 9.5 | |||
| RNB5.5-4S | 4.3 | 7.2 | |||
| RNB5.5-4 | 4.3 | 9.5 | |||
| RNB5.5-5S | 5.3 | 7.4 | |||
| RNB5.5-5 | 5.3 | 9.5 | |||
| RNB5.5-6 | 6.4 | 12 | |||
| RNB5.5-8 | 8.4 | 14 | |||
| RNB5.5-10 | 10.5 | 15 | |||
| 8 | RNB8-4 | 4.3 | 12 | 6.64-10.52 | 8 |
| RNB8-5 | 5.3 | 12 | |||
| RNB8-6 | 6.4 | 12 | |||
| RNB8-8 | 8.4 | 15 | |||
| RNB8-10 | 10.5 | 15 | |||
| RNB8-12 | 13 | 20 | |||
| 14 | RNB14-5 | 5.3 | 12 | 10.52-16.78 | 6 |
| RNB14-6 | 6.4 | 12 | |||
| RNB14-8 | 8.4 | 16 | |||
| RNB14-10 | 10.5 | 16 | |||
| RNB14-12 | 13 | 22 | |||
| 22 | RNB22-6 | 6.4 | 16.5 | 16.78-26.66 | 4 |
| RNB22-8 | 8.4 | 16.5 | |||
| RNB22-10 | 10.5 | 17.5 | |||
| RNB22-12 | 13 | 22 | |||
| 38 | RNB38-6 | 6.4 | 15.3 | 26.66-42.42 | 2 |
| RNB38-8 | 8.4 | 22.0 | |||
| RNB38-10 | 10.5 | 22.0 | |||
| RNB38-12 | 13 | 22.0 | |||
| 60 | RNB60-6 | 6.4 | 22.0 | 42.42-60.57 | 1/0 |
| RNB60-8 | 8.4 | 22.0 | |||
| RNB60-10 | 10.5 | 22.0 | |||
| RNB60-12 | 13 | 22.0 | |||
| RNB60-14 | 15 | 32.0 | |||
| 70 | RNB70-8 | 8.4 | 24.0 | 60.57-76.28 | 2/0 |
| RNB70-10 | 10.5 | 24.0 | |||
| RNB70-12 | 13 | 24.0 | |||
| RNB70-14 | 15 | 32.0 | |||
| RNB70-16 | 17 | 32.0 | |||
| 80 | RNB80-8 | 8.4 | 22.0 | 76.28-96.30 | 3/0 |
| RNB80-10 | 10.5 | 22.0 | |||
| RNB80-12 | 13 | 22.0 | |||
| RNB80-16 | 17 | 32.0 | |||
| RNB80-18 | 19 | 32.0 | |||
| RNB80-20 | 21 | 32.0 | |||
| 100 | RNB100-10 | 10.5 | 28.5 | 96.3-117.2 | 4/0 |
| RNB100-12 | 13 | 28.5 | |||
| RNB100-16 | 17 | 32.0 | |||
| RNB100-18 | 19 | 32.0 | |||
| RNB100-20 | 21 | 32.0 | |||
| RNB100-22 | 23 | 32.0 | |||
| 150 | RNB150-10 | 10.5 | 36.0 | 117.2-152.05 | 250-300 MCM |
| RNB150-12 | 13 | 36.0 | |||
| RNB150-16 | 17 | 36.0 | |||
| RNB150-18 | 19 | 36.0 | |||
| RNB150-20 | 21 | 36.0 | |||
| RNB150-22 | 23 | 36.0 | |||
| 180 | RNB180-8 | 8.4 | 38.5 | 152.05-192.6 | 350 MCM |
| RNB180-10 | 10.5 | 38.5 | |||
| RNB180-12 | 13 | 38.5 | |||
| RNB180-16 | 17 | 38.5 | |||
| RNB180-20 | 21 | 38.5 | |||
| 200 | RNB200-12 | 13 | 44.0 | 192.6~242.27 | 400 MCM |
| RNB200-16 | 17 | 44.0 | |||
| RNB200-20 | 21 | 44.0 | |||
| RNB200-22 | 23 | 44.0 | |||
| RNB200-24 | 25 | 44.0 | |||
| 325 | RNB325-12 | 13 | 50.5 | 242.27-325.0 | 500-600 MCM |
| RNB325-16 | 17 | 50.5 | |||
| RNB325-20 | 21 | 50.5 | |||
| RNB325-24 | 25 | 50.5 | |||
