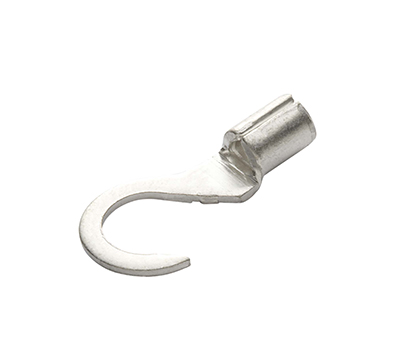

勾形裸端子
勾形裸端子
- 采用优质紫铜制成,导电性良好
基本信息
产品材质：紫铜
产品特点：采用优质亚光电镀,防锈时间大大加长,无锋利部位；接线美观。
产品特性：品质优良,压紧后不断裂松开,-40度耐热至105度正常使用。
使用方法：将电线剥开外皮,穿入端子后铜管,使用端子钳压紧即可。
| 型号 | 内径 | 外径 | 长度 | 线规 | |
| mm² | TYPE NO. | d2 | B | L | A.W.G |
| 0.5-1.5 | HNB1.25-4 | 4.3 | 8.0 | 15.8 | 22-16 |
| HNB1.25-5 | 5.3 | 8.0 | 15.8 | ||
| HNB1.25-6 | 6.4 | 11.6 | 21.5 | ||
| HNB1.25-8 | 8.4 | 11.6 | 21.5 | ||
| HNB1.25-10 | 10.5 | 137.0 | 25.5 | ||
| 1.5-2.5 | HNB2-3 | 3.2 | 8.5 | 16.8 | 16-14 |
| HNB2-4 | 4.3 | 8.5 | 16.8 | ||
| HNB2-5 | 5.3 | 9.5 | 16.7 | ||
| HNB2-6 | 6.4 | 12.0 | 212.0 | ||
| HNB2-8 | 8.4 | 12.0 | 212.0 | ||
| HNB2-10 | 10.5 | 13.7 | 25.5 | ||
| 4-6 | HNB5.5-3 | 3.2 | 9.5 | 192.0 | 12-10 |
| HNB5.5-3.5 | 37.0 | 9.5 | 192.0 | ||
| HNB5.5-4 | 4.3 | 9.5 | 192.0 | ||
| HNB5.5-5 | 5.3 | 9.5 | 192.0 | ||
| HNB5.5-6 | 6.4 | 12.0 | 25.5 | ||
| HNB5.5-8 | 8.4 | 15.0 | 27.7 | ||
| HNB5.5-10 | 10.5 | 15.0 | 27.7 | ||
