基本信息
产品材质:尼龙6
温度范围:-40°C〜120°C。
防护等级:IP66(使用合这的密封圈)。
阻燃性能:阻燃等级V0(UL94),不含卤素、磷、镉。
PG制螺纹PG Thread

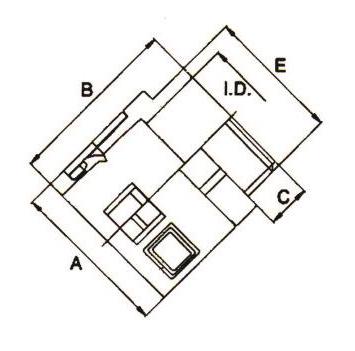

型号 | 适配软管 | 内径 | 尺寸 Dimension (mm) | 包装数量pcs/bag | |||||
TYPE NO. | Fits to tubing Size | I.D(mm) | A | B | C | E | |||
KPG7 | 1/4" | AD10.0 | 8.5 | 17.5 | 30.5 | 8.0 | 12.5 | 50 | |
KPG9 | 5/16" | AD13.0 | 10.5 | 20.6 | 37.0 | 10.0 | 15.2 | 50 | |
KPG11 | 3/8" | AD15.8 | 14.0 | 23.0 | 37.0 | 10.0 | 18.6 | 50 | |
KPG13.5 | 3/8" | AD15.8 | 15.0 | 23.0 | 37.0 | 10.0 | 20.4 | 50 | |
KPG13.5 | 1/2" | AD18.5 | 15.0 | 30.0 | 44.0 | 10.0 | 20.4 | 50 | |
KPG16 | 1/2" | AD21.2 | 17.0 | 30.0 | 44.0 | 12.0 | 22.5 | 50 | |
KPG21 | 3/4" | AD28.5 | 23.3 | 37.0 | 46.0 | 12.0 | 28.3 | 25 | |
KPG29 | 1" | AD34.5 | 31.0 | 44.0 | 48.0 | 12.0 | 37.0 | 20 | |
KPG36 | 1-1/4" | AD42.5 | 38.5 | 54.0 | 48.0 | 12.0 | 47.0 | 20 | |
KPG48 | 2" | AD54.5 | 50.0 | 67.0 | 52.0 | 14.5 | 59.3 | 10 |
型号 | 适配软管规格 | 内径 | 尺寸 Dimension (mm) | 包装数量 | |||||
TYPE NO. | Fits to tubing Size | I.D(mm) | A | B | C | E | pcs/bag | ||
KM12 | AD10.0 | 6.5 | 12.0 | 32.5 | 10.0 | 6.5 | 100 | ||
KM12 | AD13.0 | 10.0 | 12.0 | 36 | 10.0 | 8.0 | 100 | ||
KM16 | AD13.0 | 10.0 | 16.0 | 33 | 10.0 | 10.0 | 100 | ||
KM16 | AD15.8 | 12.0 | 16.0 | 35.5 | 11.5 | 12.0 | 100 | ||
KM20 | AD15.8 | 12.0 | 20.0 | 35.5 | 11.5 | 12.0 | 100 | ||
KM20 | AD18.5 | 14.3 | 20.0 | 37.5 | 12.0 | 14.3 | 100 | ||
KM20 | AD21.2 | 17.0 | 20.0 | 40 | 13.0 | 17.0 | 100 | ||
KM25 | AD21.2 | 17.0 | 25.0 | 40 | 13.0 | 17.0 | 50 | ||
KM25 | AD25.0 | 20.0 | 25.0 | 44 | 14.0 | 20.0 | 50 | ||
KM32 | AD28.5 | 23.0 | 32.0 | 47 | 14.0 | 25.0 | 50 | ||
KM32 | AD34.5 | 29.0 | 32.0 | 56 | 20.0 | 29.0 | 50 | ||
KM36 | AD34.5 | 29.0 | 36.0 | 50 | 14.0 | 29.0 | 20 | ||
KM40 | AD34.5 | 29.0 | 40.0 | 53.5 | 15.0 | 29.0 | 20 | ||
KM40 | AD42.5 | 36.0 | 40.0 | 53.5 | 15.0 | 36.0 | 10 | ||
KM50 | AD54.5 | 48.0 | 50.0 | 55 | 16.0 | 38.0 | 10 | ||
KM60 | AD54.5 | 48.0 | 60.0 | 55 | 16.0 | 53.0 | 10 | ||
KM63 | AD54.5 | 48.0 | 63.0 | 55 | 16.0 | 53.0 | 10 |
型号 | 适配软管 | 内径 | 尺寸 Dimension (mm) | 包装数量 pcs/bag | |||||
TYPE NO. | Fits to tubing Size | I.D(mm) | A | B | C | E | |||
KPF3/8A | 1/4" | 10.5 | 17.5 | 30.5 | 10 | 16.3 | 50 | ||
KPF3/8B | 5/6" | 10.5 | 20.6 | 37 | 13 | 16.3 | 50 | ||
KPF1/2A | 3/8" | 16 | 23 | 39 | 13 | 20.9 | 50 | ||
KPF1/2B | 1/2" | 16 | 29.5 | 43.5 | 13 | 20.9 | 50 | ||
KPF3/4 | 3/4" | 21.8 | 37 | 49 | 15 | 26.4 | 50 | ||
KPF1 | 1" | 29 | 44 | 52 | 16 | 33.2 | 50 | ||
KPF1-1/4 | 1-1/4" | 34.5 | 54 | 54 | 18 | 41.9 | 25 | ||
KPF2 | 2" | 50 | 67 | 59.5 | 22 | 59.6 | 20 |
