基本信息
产品材质:TPR
工作温度:-40℃~100℃
防护等级:IP66
产品特点:徒手即可安装,省时方便。

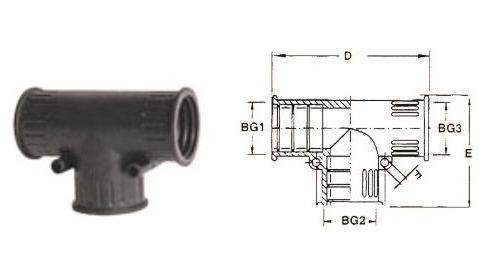

型号 TYPE NO. | 适配软管 BG1 | 适配软管 BG2 | 适配软管 BG3 | 长度 E | 宽度 D | 固定孔 F | 包装 Packing | ||
SVT-10.0 | 1/4" | 1/4" | 1/4" | 32.5 | 46.5 | 3 | 50 | ||
SVT-13.0 | 5/16" | 5/16" | 5/16" | 30.3 | 20.5 | 3 | 50 | ||
SVT-15.8 | 3/8" | 3/8" | 3/8" | 44.2 | 31.6 | 3 | 50 | ||
SVT-21.2 | 1/2" | 1/2" | 1/2" | 60 | 42.5 | 3 | 50 | ||
SVT-28.5 | 3/4" | 3/4" | 3/4" | 80 | 56 | 4 | 25 | ||
SVT-34.5 | 1" | 1H | 1" | 95.5 | 67.4 | 4 | 25 | ||
SVT-42.5 | 1-1/4" | 1-1/4" | 1-1/4" | 116.3 | 80.1 | 4 | 10 | ||
SVT-54.5 | 2" | 2" | 2" | 135.5 | 96.5 | 4 | 10 |
