基本信息
产品材质:TPR
工作温度:-40℃~100℃
防护等级:IP66
产品特点:徒手即可安装,省时方便。

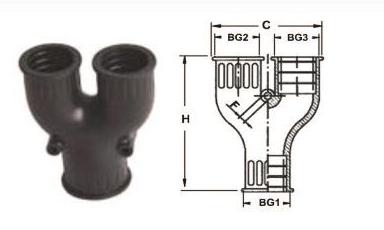

型号 TYPE NO. | 适配软管 BG1 | 适配软管 BG2 | 适配软管 BG3 | 长度 E | 宽度 D | 固定孔 F | 包装 Packing |
SVU-13.0 | 5/16" | 1/4" | 1/4" | 56.5 | 38.5 | 3 | 50 |
SVU-15.8 | 3/8" | 5/16" | 5/16" | 66.5 | 43.1 | 3 | 50 |
SVU-21.2 | 1/2" | 3/8" | 3/8" | 75.7 | 48.7 | 3 | 50 |
SVU-28.5 | 3/4" | 1/2" | 1/2" | 82 | 62.4 | 4 | 25 |
SVU-34.5 | 1" | 3/4" | 3/4" | 87.1 | 76.5 | 4 | 25 |
SVU-42.5 | 1-1/4" | 1" | 1" | 94.2 | 90 | 4 | 10 |
SVU-54.5 | 2" | 1-1/4" | 1-1/4" | 102.5 | 100 | 4 | 10 |
