基本信息
产品材质:尼龙
温度范围:-40°C〜120°C,短时间达150°C。
产品特性:耐油,耐酸城,防水,防紫外线,绝缘,不含卤素,阻燃。
防护等级:IP65,使用合适的密封圈。

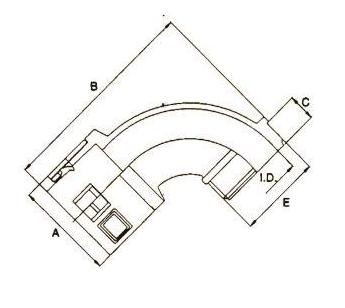

型号 TYPE NO. | 适配软管 Fits to tubing Size | 内径 LD(mm) | 尺寸 Dimension (mm) | 包装数量 Packing Unit pcs/bag | |||||
A | B | C | E | ||||||
NLL-PG7 | NLL-M10 | 1/4" | AD10.0 | 7.0 | 17.5 | 46.0 | 8.0 | 12.5 | 50 |
NLL-PG9 | NLL-M12 | 5/16" | AD13.0 | 10.5 | 20.6 | 56.0 | 10.0 | 15.2 | 50 |
NLL-PG11 | NLL-M16 | 3/8" | AD15.8 | 12.5 | 23.0 | 60.0 | 10.0 | 18.6 | 50 |
NLL-PG16 | NLL-M20 | 1/2" | AD21.2 | 16.0 | 29.5 | 72.0 | 12.0 | 22.5 | 50 |
NLL-PG21 | NLL-M25 | 3/4" | AD28.5 | 21.8 | 37.0 | 82.0 | 12.0 | 28.3 | 50 |
NLL-PG29 | NLL-M32 | 1" | AD34.5 | 28.0 | 44.0 | 96.0 | 12.0 | 37.0 | 30 |
NLL-PG36 | NLL-M40 | 1-1/4" | AD42.5 | 36.5 | 54.0 | 108.0 | 12.0 | 47.0 | 20 |
NLL-PG48 | NLL-M50 | 2" | AD54.5 | 48.0 | 67.0 | 126.0 | 14.5 | 59.3 | 10 |
